Short Description:

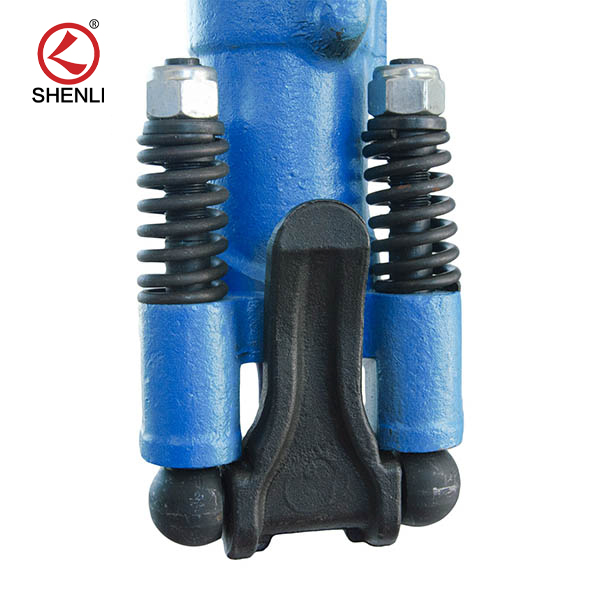

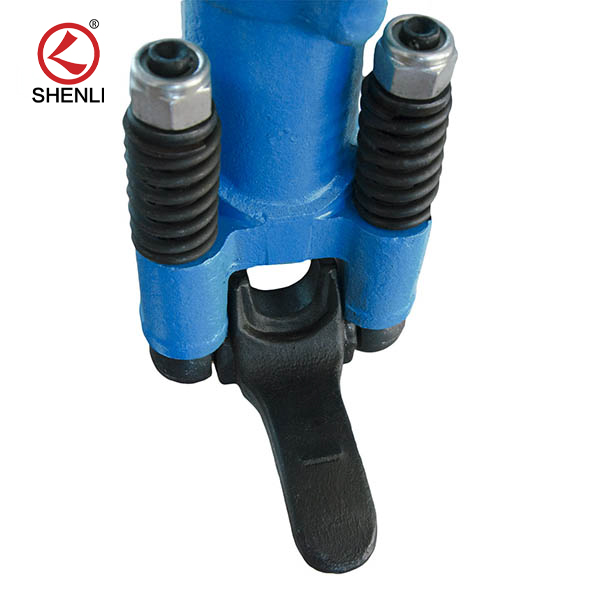

The YT28 air-leg rock drill is a kind of high-efficiency, energy-saving and environmentally friendly rock drilling equipment. Compared with similar pneumatic products, the YT28 air-leg rock drill has the advantages of low failure rate, fast rock drilling speed, long service life of wearing parts, low noise, light weight and simple operation
Product Features:
1、The height of the machine is moderate and the range of the stroke is large, so it can drill the anchor holes which are perpendicular to the roof surface, which solves the problem that the anchor holes in the roadway are not perpendicular to the surface of the roof for a long time, which guarantees the quality and progress of the project, saves the construction cost and improves the efficiency.
2、Good comprehensive rock drilling performance, not only for medium hard rock drilling, but also for rock drilling with f≤6, which can be applied to both rock roadway and quasi roadway.
3、Simple structure and more durable, easy to maintain, lower maintenance cost
4、Flexible start, air and water linkage, air leg fast return, air pressure adjustment and other institutions.
5、The control handle is concentrated with the shank body, the mechanism is novel and convenient to operate with the muffler cover can effectively reduce the noise and change the direction of the row of visits at will to improve the site The operation conditions of the field
6、YT28 rock drill is suitable for wet rock drilling of medium hard or hard rock.
Application areas:
Mining, traffic, tunnels, water conservancy construction, quarries and other work
Technical parameters:
Product Model: | YT28 |
Net weight: | 26KG |
Total length: | 66.1CM |
Air consumption: | ≤81L/S |
Impact frequency: | ≥37Hz |
Drilling diameter: | 34-42mm |
Piston diameter: | 80mm |
Piston stroke: | 60mm |
Working air pressure: | 0.63mpa |
Working water pressure: | 0.3mpa |
Drilling depth: | 5M |
Looking for a top notch rock drill that can tackle medium hard rock drilling applications with ease? Look no further than the YT28 Air Leg Pneumatic Rock Drill with Pusher Leg Functionality.
This impressive tool is designed to deliver outstanding drilling power, precision, and endurance for the toughest worksites. What sets the YT28 apart from its competitors is its moderate height and long stroke range which make it perfect for drilling anchor holes directly perpendicular to the roofs surface--keeping your project on track and under budget. This feature is also critical when dealing with roadway anchor holes that aren't aligned properly as it reduces quality issues and rework.
And besides exceptional drilling capabilities the YT28 boasts excellent overall rock drilling performance. Don't let tough rock surfaces slow down your work progress; get yourself a YT28 Air Leg Pneumatic Rock Drill today! This tool comes equipped with impressive capabilities that allow you to easily handle different medium hard rocks without worrying about their density or size variations across drilling applications such as quarries, mines or construction sites. One key feature is its pusher leg functionality which applies pressure to the bit ensuring faster precise and more efficient drilling with reduced risk of bit breakage or getting stuck.
Moreover its sturdy construction ensures durability even in the harshest environments making it a reliable tool for heavy use while the ease of maintenance design minimizes downtime and keeps your drill performing optimally over extended periods. Achieving efficient results while minimizing physical strain is crucial when using heavy duty tools like rock drills which is why the YT28 Air Leg Pneumatic Rock Drill stands out as an exceptional option. Its lightweight design combined with its ergonomic features ensures comfort during long hours of use without inducing fatigue while its user friendly interface simplifies operation even for those who are new to using this type of equipment.
Whether working on anchor holes on roadsides or engaged in mining or construction projects this powerful rock drill with pusher leg functionality delivers reliable drilling performance that customers can depend on.
