Product introduction：

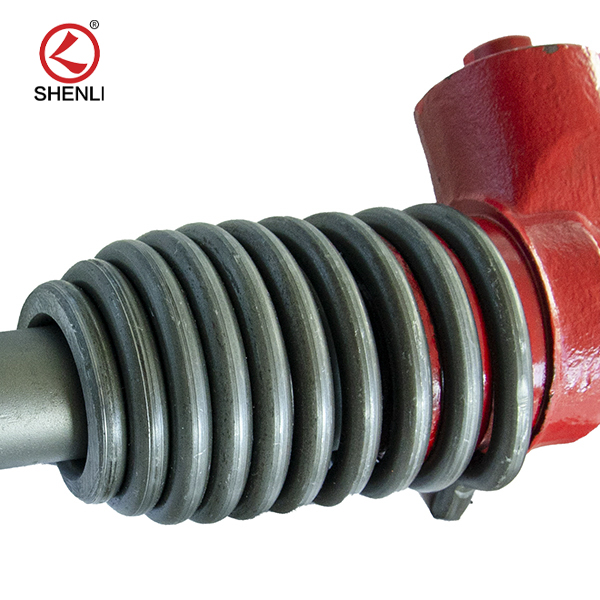

Adopted Japan's Toku technology, the air picks with proven forging technology are durable, lightweight and good performance, and easy to operate. Mainly used for.
Breaking concrete, breaking permafrost, breaking the ice; road repair, planing pits, trenching; mining soft rock, coal mining, etc. Replacement attachments can be used for such as loading and unloading track pins and other construction work that requires impact is more flexible and lighter than similar products, suitable for all-round work, especially in small working spaces, upward or ascent. It is also very popular as an air shovel.
Function:
High durability and long life
Durable forging body, long service life.
Replaceable bushing prevents cylinder wear.
Simple to operate and maintain
The automatic push-up mechanism, smooth operation.
Lightweight, easy to operate.
Simple structure, few parts, easy maintenance.
Technical parameters.
External dimensions (L×W×H) | 456×160×110mm |
Machine weight | 7.2kg |
Piston diameter | 35mm |
Stroke of hammer body | 120mm |
Weight of hammer body | 0.6kg |
Working air pressure | 0.4-0.49Mpa |
Impact energy | (0.49 Mpa) ≥30J |
Impact frequency | （0.49 Mpa） ≥21.6Hz |
Air consumption | (0.49 Mpa) ≤20L/S |
diameter of air pipe | 19mm |
