Product Description:

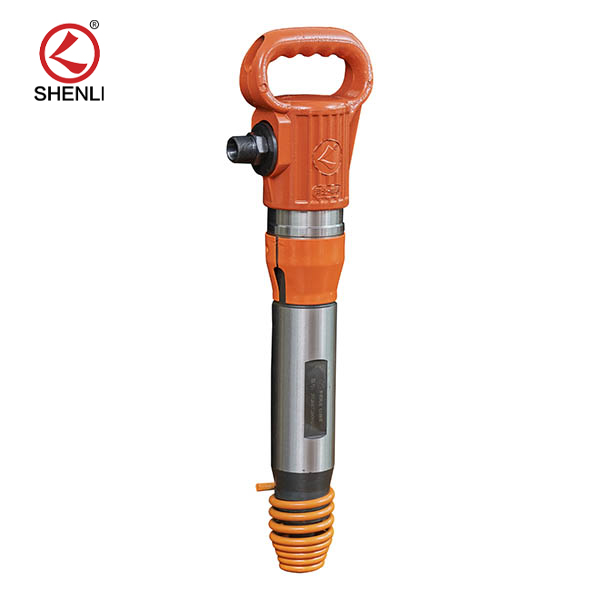

The G10 air pick uses compressed air as the power tool, and the compressed air is distributed in two sections of the cylinder by the tubular distribution diverter valve in turn, so that the hammer body makes repeated impacting movements and impacts the end of the pick, causing the pick to strike into the rock or ore layer, causing it to split into pieces.
Applications:
G10 air pick an applicable scope
1、Coal mining in coal mines, planning the foot pit of the column, opening the ditch;
2、Mining soft rock;
3、Breaking concrete, permafrost, and ice in construction and installation projects;
4、In the mechanical industry, where impact movement is required, such as loading and unloading of tractor and tank track pins.
Technical parameters:
Weight | 10kg |
Over all length | 570mm |
Piston dia | 38mm |
Rock drill conert size | Φ24H8×42h3(mm) |
Impact frequency | 16Hz |
Impact consumption | 43J |
Air consumption | 26L/s |
Air hose size | 16mm |
Working pressure | 0.63MPa |
Do you need an efficient way of breaking up rocks or ore layers? If so then look no further than the G10 Pneumatic Pick! This powerful yet simple tool employs compressed air which allows it to deliver mighty blows that effortlessly break up your target into manageable pieces.
With a unique tubular distribution diverter valve design pressed air is distributed evenly across two separate sections of its cylinder. The repeated impacts caused by these features result in hammer body striking end part of pick thus delivering significant power to your targeted area.
Accuracy is also possible thanks precision design as well as control over force and direction per blow – making it more versatile than many other pneumatic picks out there today.
Further strength comes from high quality construction materials making it perfect choice whether you're an amateur or professional looking for a tough reliable device! One of the most endearing qualities of the G10 Pneumatic Pick is its small size relative to its exceptional power output.
Unlike many other air powered picks on the market today this tool offers unrivaled maneuverability in tight spaces while providing reliable performance at all times. With such features focused on delivering superior value at every turn there's no wonder why the G10 Pneumatic Pick has become a must have for anyone looking to tackle tough drilling or demolition jobs. Its strong construction ensures durability even in harsh work conditions; making it capable of enduring various applications with ease - perfect for professionals who demand nothing but exceptional tools.
