Product Description:

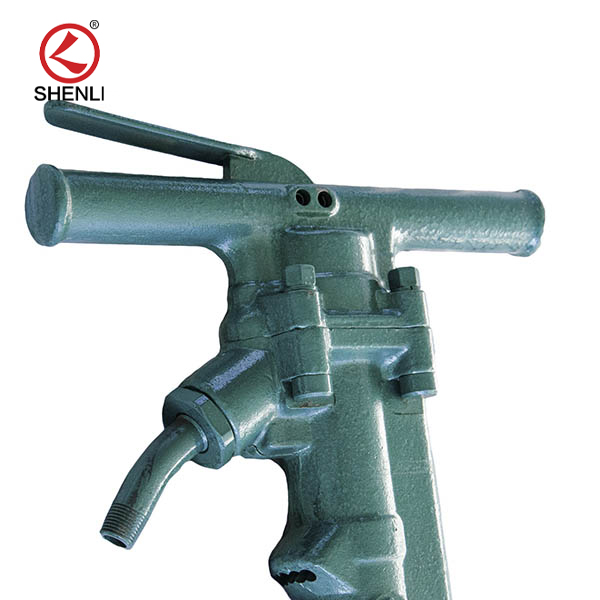

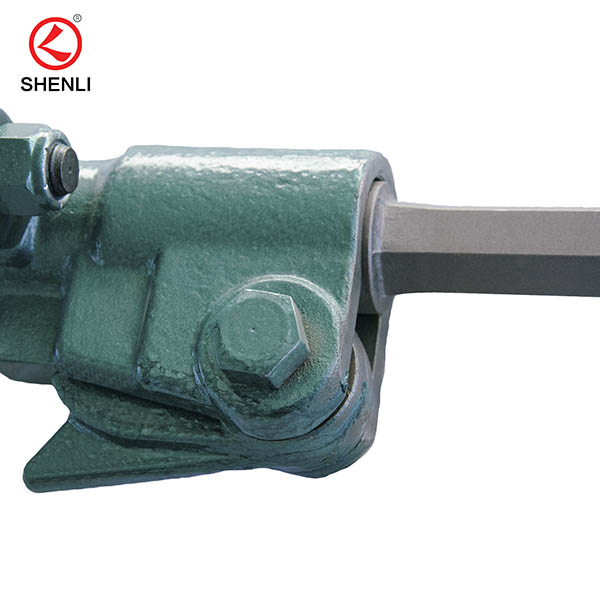

B47 crusher adopts the mature technology of American Gardner Denver Pneumatic Group Company,It is a crushing tool powered by compressed air, which can finish reinforced concrete and rock efficiently stone, asphalt and other crushing work, with light and durable, fast and efficient, etc mine, bridge, road, water, electricity pipe network construction repair and demolition of the ideal tool.
Applications：Construction and installation work to break concrete, frozen soil and ice, mining soft rock, demolition of walls, pavement, cement, etc;
Function：
High Power High Productivity
Long piston stroke provides superior impact energy.
High Durability Easy Maintenance
Reinforced cup retainer for high durability
Replaceable bushing to protect wear of cylinder.
Simple structure for less maintenance
Technical parameters：
Product Model | B47 |
Piston diameter (mm) | 47.6 |
Piston stroke(mm) | 100 |
Striking frequency(B.P.M) | 1400 |
Net weight(KG) | 21.5 |
Overall length(mm) | 550 |
Air consumption(m³) | 1.6 |
Air tube size(mm) | 19 |
Brazing tail size(mm) | R25*105 |
Size of air inlet(P/T) | 3/4 |
